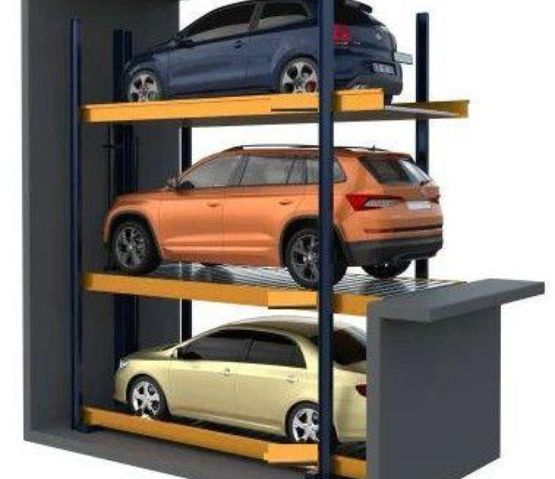

ARIHANT's three level pit parking system providing dependent parking spaces for three cars one on top second on ground level and third into the pit. This system uses three platforms, & two of which are interconnected the lower platform settles underground/into the pit and the upper-level platforms movement is driven upwards and downwards independently.

To take out upper or lower-level car, entry-level car has to be driven out and parked elsewhere. Save land area and take full use of the underground space to raise more parking numbers.

Technical Specification:

• System stands on three steel pillars with base plates mounted on the floor inside the pit/well.
• Platform made of hot-dipped galvanized corrugated floor plates to reduce dead weight and increase durability.
• Two sliding platforms are mounted onto the steel pillars with sliding bearings for smooth and efficient movement.
• Three platforms of different sizes are provided to accommodate various vehicle dimensions and parking requirements.
• System is operated through a mechanical control system to ensure proper synchronous operation of the hydraulic cylinders during lifting and lowering.
• System is lifted and lowered using two hydraulic cylinders.
• Automatic hydraulic safety valve prevents accidental lowering of the platform and enhances operational safety.
• Includes all necessary connecting elements, bolts, nuts, and related accessories for complete installation.
