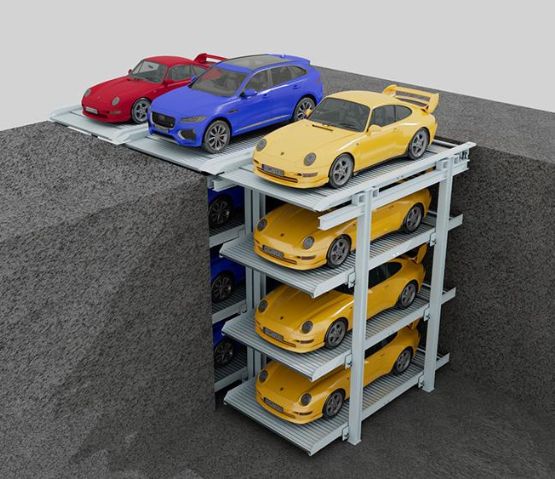

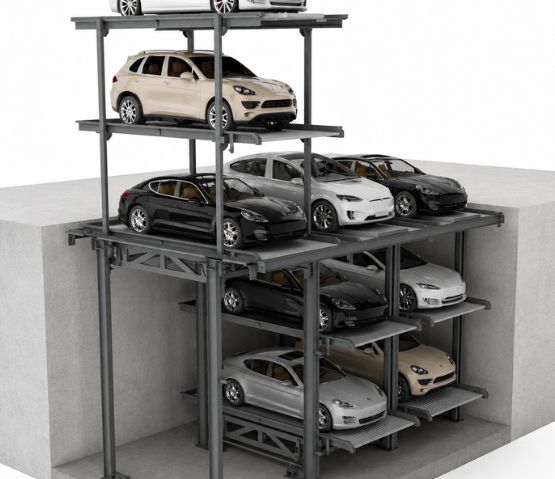

ARIHANT’s Four level pit type parking system provides parking
space for four passenger cars one on ground level above
ground and other into the pit. This is a dependent type parking
system. Aesthetic Design makes it look posh; it is based on
hydraulic type systems. The unique feature of this system is it
can occupy four cars with dependent exist of any car which
saves more space, this type of systems are installed into the pit
and the hi-tech mechanism has an innovative two pallet
connected with each other that is lifted up and other two
platforms are lifted separately and after that the car is loaded.
The four-level pit type Stack parking systems can be installed in
the ground level, basement level or any other corner but
requires a pit on that level. Simple operation, an operating
control box can be conveniently located anywhere in the
garage, basements, and under the slab structures for operation
from a safe distance.
Technical Specification:
- System stands on three steel pillars with base plates mounted on the floor inside the pit/well.
- Platform wave plate is made of hot-dipped galvanized corrugated floor plates to reduce dead weight and increase durability.
- Three sliding platforms are mounted onto the steel pillars with sliding bearings to ensure smooth and reliable operation.
- Four platforms of different sizes are provided to accommodate various vehicle dimensions and maximize parking capacity.
- System is operated through a mechanical control system to ensure proper synchronous operation of the hydraulic cylinders during lifting and lowering.
- System is lifted and lowered using three hydraulic cylinders.
- Solenoid hydraulic safety valve prevents accidental lowering of the platform and enhances operational safety.
- Includes all necessary connecting elements, bolts, nuts, and related accessories for complete installation.
