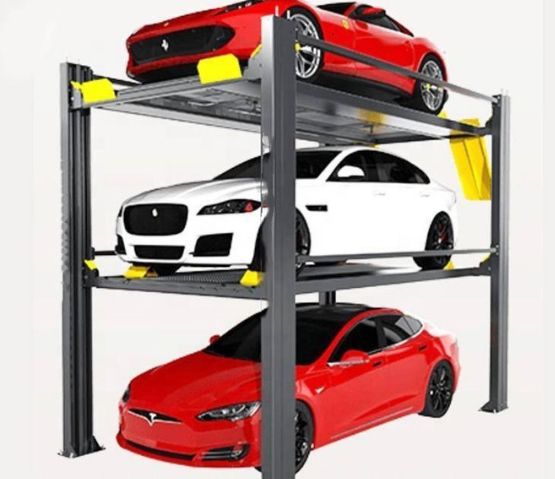

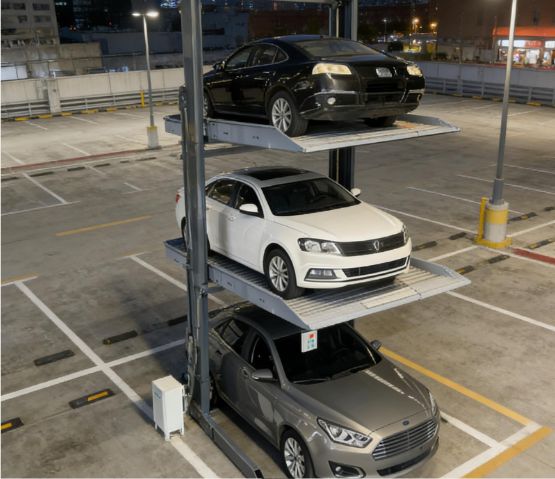

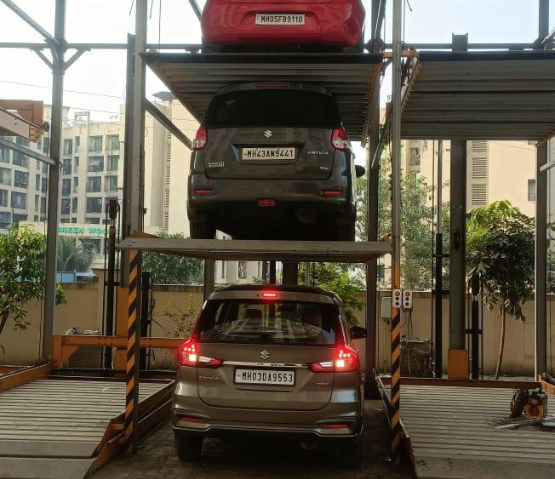

ARIHANT’s three level car parking system providing dependent parking spaces for three cars one on top of the other each. The lower vehicle parks directly on the floor plate. The vehicle parked on the bottom must be driven out before lowering the platform.

Parking space for three passenger cars one above the other It is based on hydraulic systems and the hi-tech mechanism has an innovative pallet that is lifted up and after that the car is loaded. Simple operation, an operating control pendant can be conveniently located anywhere in the garage, basements, and outdoor structures for operation from a safe distance.

Technical Specification:

• System stands on three steel pillars with base plates mounted on the floor at ground level.
• Platform made of hot-dipped galvanized corrugated floor plates to reduce dead weight and increase durability.
• Two sliding platforms are mounted onto the steel pillars with sliding bearings to ensure smooth and reliable operation.
• Three platforms of different sizes are provided to accommodate various vehicle dimensions and parking requirements.
• System is operated through a mechanical control system to ensure proper synchronous operation of the hydraulic cylinders during lifting and lowering.
• System is lifted and lowered using two hydraulic cylinders.
• Solenoid hydraulic safety valve prevents accidental lowering of the platform.
• Includes all necessary connecting elements with high-tensile (HT) bolts, nuts, and related accessories.
