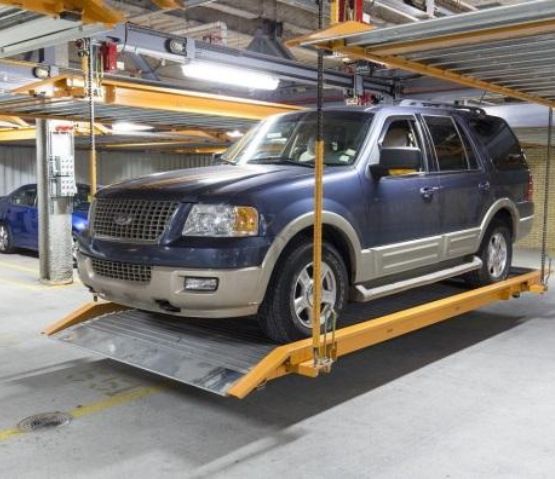

ARIHANT’s No post Suspended type parking system provides parking space for two passenger cars one above the other. Aesthetic Design makes it look posh; it is based on hydraulic systems. The unique feature of this system is it’s doesn't have any column or post on floor level which saves more space, this type of systems are mounted on slab with H.T chemical fastening and the hi-tech mechanism has an innovative pallet that is lifted up and after that the car is loaded.

The Suspended type Stack parking systems can be installed in the driveways, podium, basement ground or any other corner but under the slab area. When the platform is at its peak level, the driveway is clear for normal usage or car passing also. Simple operation, an operating control box can be conveniently located anywhere in the garage, basements, and under the slab structures for operation from a safe distance.

Technical Specification:

• System frame mounted on the slab with base plates and platform balanced on rope.
• Platform made of hot-dipped galvanized corrugated floor plates to reduce dead weight and increase durability.
• Lifting of platform is carried out by horizontal hydraulic cylinders mounted on the frame and balanced on rope, with the frame supported on sliding bearings.
• Single platform parking arrangement for efficient space utilization.
• System is operated through a mechanical control system to ensure proper synchronous operation of the hydraulic cylinders during lifting and lowering.
• System is lifted and lowered using two hydraulic cylinders.
• Solenoid hydraulic safety valve prevents accidental lowering of the platform.
• Includes all necessary connecting elements, bolts, nuts, and related accessories.
