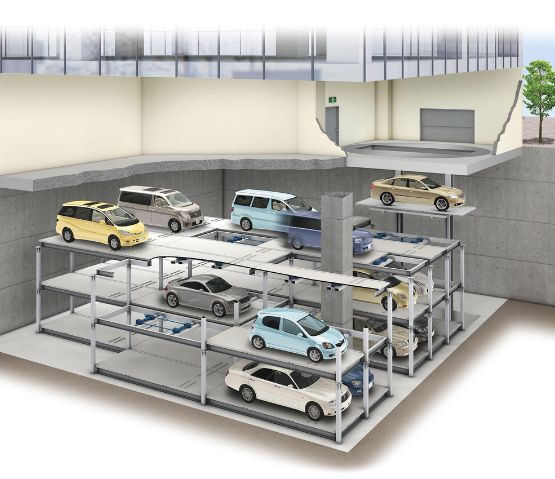

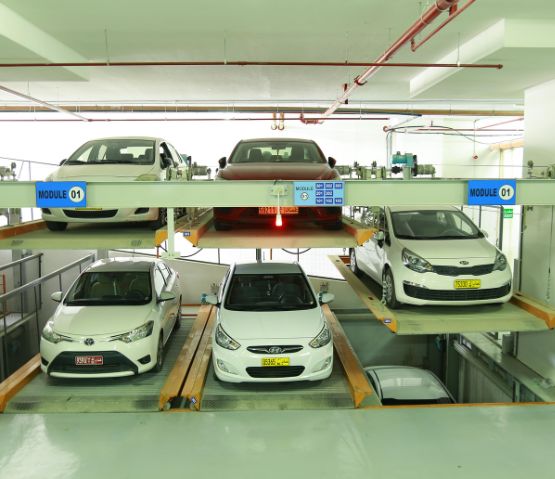

ARIHANT’s puzzle parking systems is a car parking system providing independent parking spaces for cars on two levels, and side by side. Parking spaces are arranged on two different levels, one on the top of the other with platform as per requirement. Upper floor platforms are moved vertically, the platforms on the ground floor are moved horizontally. Multiple entries to reduce time. Simple operation and easy maintenance.

Occupies less space & provide maximum number of parking space. This system is suitable for basements, podiums or open spaces in commercial & residential establishments. Variation available from 2 to 6 levels and two level into the pit with its intelligent and puzzle-like design, this innovative system allows multiple vehicles to be parked in a compact space.

Technical Specification:

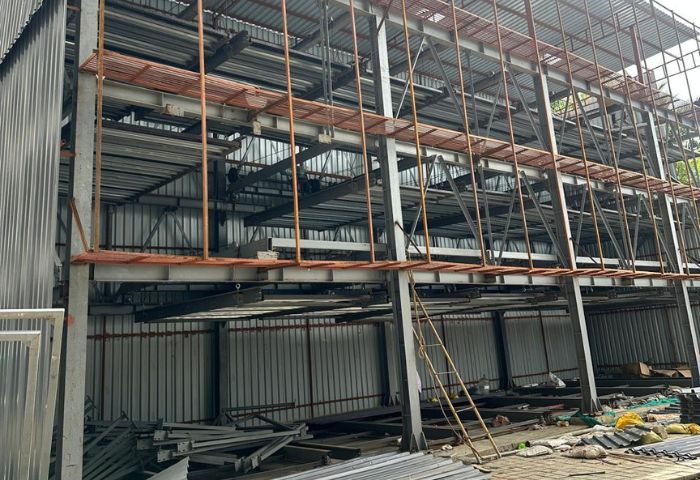

• System stands on heavy steel pillars with base plates independently mounted on the floor inside the pit/well.
• Platform made of hot-dipped galvanized corrugated floor plates to reduce dead weight and increase durability.
• Lifting mechanism is mounted on steel trolleys for platform lifting and sliding operations, with separate mechanisms and motors provided for both functions.
• All lifting platforms are of the same size, except for the pit platform and ground-level platform.
• System is operated through a motorized mechanical lifting system where platforms are lifted by ropes wound on drum or disc-type winding assemblies mounted on each trolley. Four-side rope mounting is provided for every platform to ensure proper synchronous lifting and lowering.
• Automatic Touch Screen Display with optional RFID integration is provided for easy operation of the system, enabling two-way communication between the user and the parking system for an enhanced parking experience.
• Includes all necessary connecting elements with high-tensile (H.T.) bolts, nuts, and related accessories.
