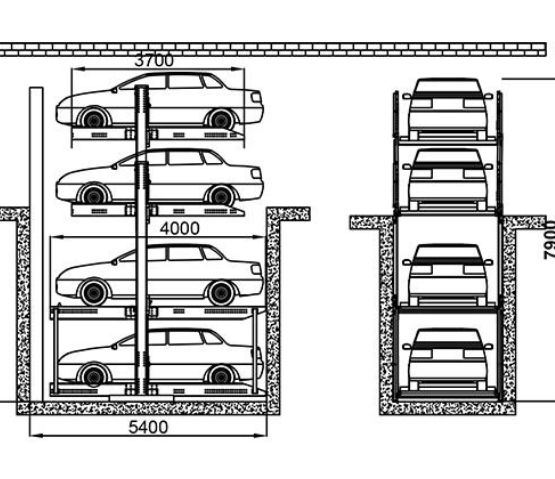

ARIHANT’s Four level double pit type parking system provides parking space for four passenger cars one on ground level one above ground level and other two into the pit. This is a dependent type parking system. Aesthetic Design makes it look posh; it is based on hydraulic type systems. The unique feature of this system is it can occupy four cars with dependent exit of any car which saves more space, this type of systems are installed into the pit and the hi-tech mechanism has an innovative two pallet connected with each other that is lifted up and other two platforms are lifted separately and after that the car is loaded.

The four-level double pit type Stack parking systems can be installed in the ground level, basement level or any other corner but requires a pit on that level. Simple Operation, an operating control box can be conveniently located anywhere in the garage, basements, and under the slab structures for operation from a safe distance.

Technical Specification:

• System stands on two steel pillars with base plates mounted on the floor inside the pit/well.
• Platform made of hot-dipped galvanized corrugated floor plates to reduce dead weight and increase durability.
• Two sliding platforms are mounted onto the steel pillars with sliding bearings to ensure smooth and reliable operation.
• Three platforms of different sizes are provided to accommodate various vehicle dimensions and optimize parking capacity.
• System is operated through a mechanical control system to ensure proper synchronous operation of the hydraulic cylinders during lifting and lowering.
• System is lifted and lowered using two hydraulic cylinders.
• Automatic hydraulic safety valve prevents accidental lowering of the platform and enhances operational safety.
• Includes all necessary connecting elements, bolts, nuts, and related accessories for complete installation.
